Screen basket has the following main features:
1. It can be widely used in various production lines with a wide application area (Including head-box screen)
2. We develop various high strength bars with multiple surface slopes (already applied for national panent) for the suitable pulp material for you, slots and surface slopes as customers required.
3. The wedge wire basket slots are communicated all the length, with the flange and reinforcement ring occupy no area, more than 40% larger than the slot aperture ratio.
4. The slots of the wedge wire basket can be minimum 0.1mm; with even slot width and precision that in foreign countries, to ensure 90% slots have a width within 0.023mm. 5. The screening surface of the screen basket is smooth, with no burrs.
6. The entire surface of the screen basket is plated with hard chrome, with the thickness of the plating from 60 um to 150 um, which can be increased to 200~250 um as customer required for special pulp material.
Inflow pressure screen and Outflow pressure screen:
1. Favorable screening efficiency.
2. Obvious pulse reduction.
3. Improve the paper machine operating efficiency.
4. Substantially improve the product paper quality.
5. Preferential protector device before paper machine.
Inflow processing specification:
最小min. 最大max.
内徑(Inside diameter): 305 1900
篩網高度(Height of screen): 200 1650
板厚 (Thickness of screen plate): 5 10
縫寬(Width of slot): 0.1
材質(Material): SUS316L
Outflow processing specification:
最小min. 最大max.
内徑(Inside diameter): 305 1900
篩網高度(Height of screen): 267 1650
板厚 (Thickness of screen plate): 5 10
縫寬(Width of slot): 0.1
材質(Material): SUS 316L
Outflow wedge wire screen
Outflow interference-stripes hole screen
1. All the surfaces are polished smooth.

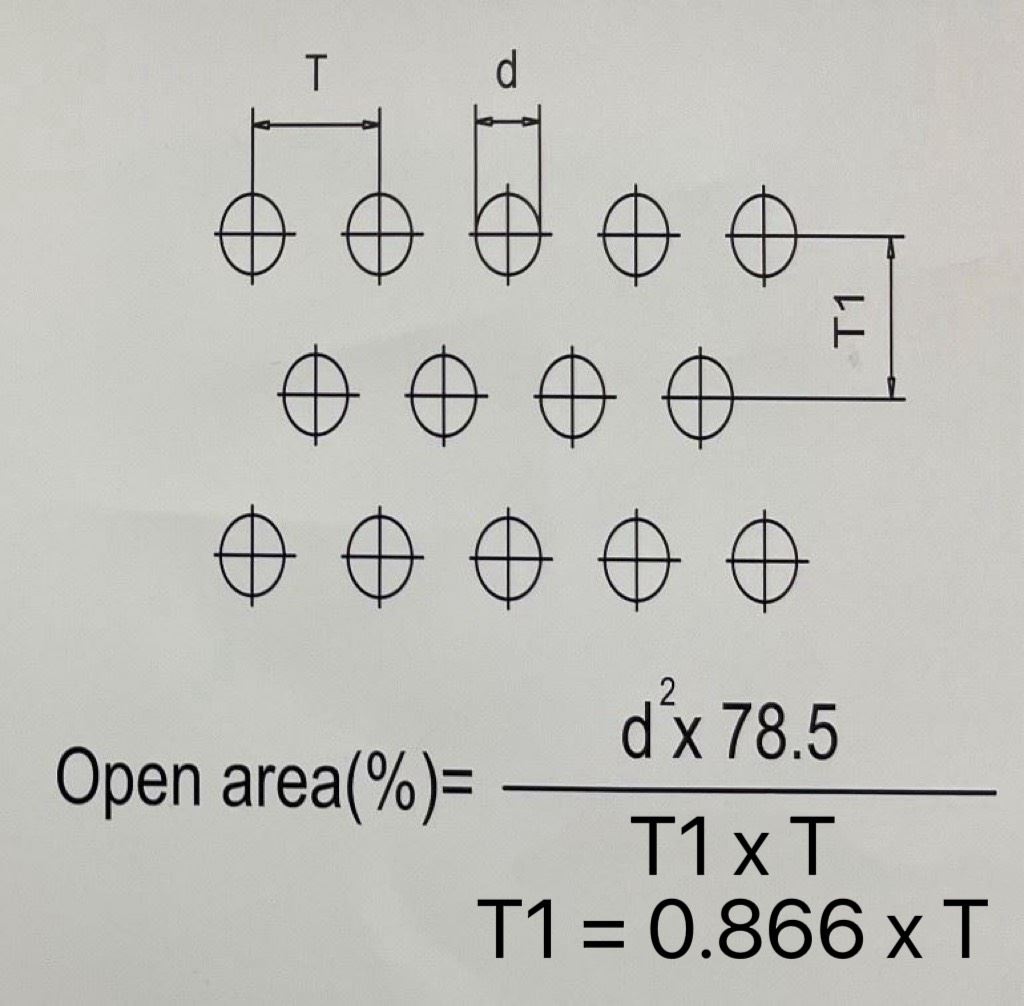

2. The open area is 30~40% large than common mill screen.
3. It has high mechanical strength.
Outflow corrugated screen
Outflow interference wedge wire
1. Various specification : Ø600~Ø2135mm
2. Thickness : 6~25mm
